4 Axis Low Cost Industrial Robot with High Speed

ENQUIRY
  • Description
4 Axis Low Cost Industrial Robot with High Speed
Product Description
Technical Parameters
Payload
6 kg
Reach
1000 mm
Structure
Articulated
Number of axes
4
Repeatability
±0.05 mm
Max. motion range
Axis 1
±160°
Axis 2
+90°/-35°
Axis 3
+50°/-70°
Axis 4
±360°
Max. speed
Axis 1
223°/sec
Axis 2
223°/sec
Axis 3
375°/sec
Axis 4
600°/sec
Weight
≈60 kg
Mounting type
Horizontal, wall, ceiling
Ambient temperature
-20 ℃~80 °C

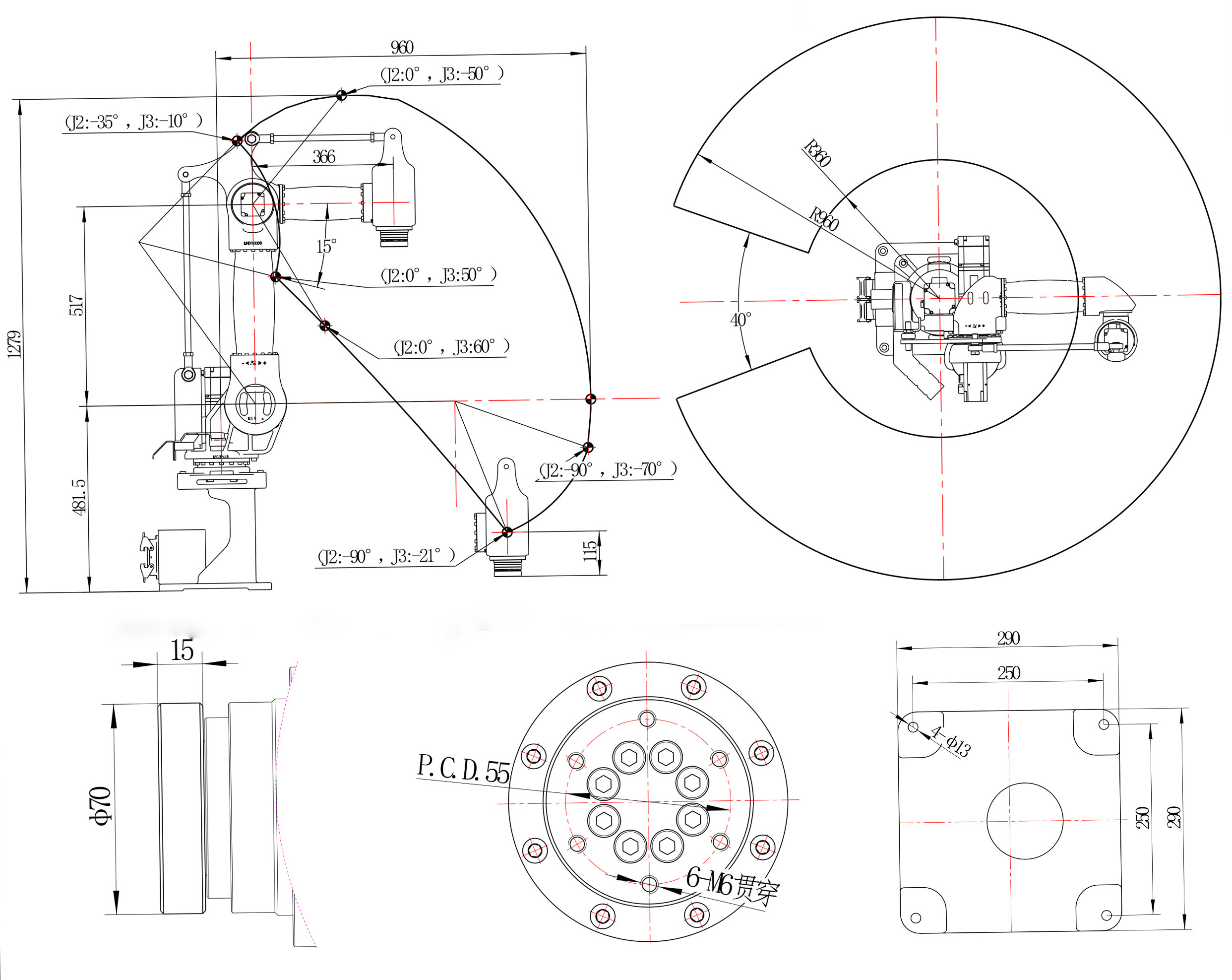

Workspace
Main Applications
Materials handling, parts transfer, machine management, palletizing, packaging &testing
Applicable Cases

Loading &unloading of small stamped parts

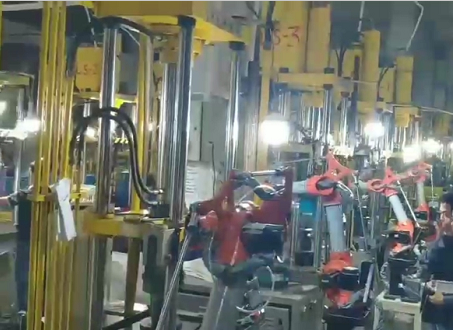

BY1000-B-4, a 6 kg light-duty robot newly developed by the company, has a high reach. The figure on the right shows the loading and unloading scene in a customer’s stamping shop where the robot is used. Given its compact structure and high speed, it can fully meet the rhyme and process requirements of common stamping presses.
Detailed Images

Servo Motor

High-precision control, good high-speed performance and strong anti-overload capability

Harmonic Reducer

High-precision technology, high load capacity, fast transmission speed, stable operation

Servo Motor Driver

Control the servo motor by three methods: position, speed and torque

Controller Board

Including various interfaces such as IO module, safety module, A / V analog module

Aluminum Shell

Independent design, exquisite appearance, CNC machining and casting
CONTROL SYSTEM
●Structural optimization algorithm suitable for the body control of various types of structure.

●Modular setting of functions

suitable for diverse applications.

●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
